具体实施方式

下面结合附图和实施例对本实用新型作进一步的详细说明。可以理解的是，此处所描述的具体实施例仅仅用于解释本实用新型，而非对本实用新型的限定。另外还需要说明的是，为了便于描述，附图中仅示出了与本实用新型相关的部分而非全部结构。

在本实用新型的描述中，除非另有明确的规定和限定，术语“相连”、“连接”、“固定”应做广义理解，例如，可以是固定连接，也可以是可拆卸连接，或成一体；可以是机械连接，也可以是电连接；可以是直接相连，也可以通过中间媒介间接相连，可以是两个元件内部的连通或两个元件的相互作用关系。对于本领域的普通技术人员而言，可以具体情况理解上述术语在本实用新型中的具体含义。

在本实用新型中，除非另有明确的规定和限定，第一特征在第二特征之“上”或之“下”可以包括第一和第二特征直接接触，也可以包括第一和第二特征不是直接接触而是通过它们之间的另外的特征接触。而且，第一特征在第二特征“之上”、“上方”和“上面”包括第一特征在第二特征正上方和斜上方，或仅仅表示第一特征水平高度高于第二特征。第一特征在第二特征“之下”、“下方”和“下面”包括第一特征在第二特征正下方和斜下方，或仅仅表示第一特征水平高度小于第二特征。

在本实施例的描述中，术语“上”、“下”、“右”、等方位或位置关系为基于附图所示的方位或位置关系，仅是为了便于描述和简化操作，而不是指示或暗示所指的装置或元件必须具有特定的方位、以特定的方位构造和操作，因此不能理解为对本实用新型的限制。此外，术语“第一”、“第二”仅仅用于在描述上加以区分，并没有特殊的含义。

本实施例提供了一种发动机打标面的二次磨削装置，能够控制机构实现精确控制，无需拆除任何发动机零部件，大大简化了操作流程，降低了操作复杂度，同时也避免了因拆卸零部件可能引起的油道、水道等连接处的泄漏，减少了质量问题的发生。

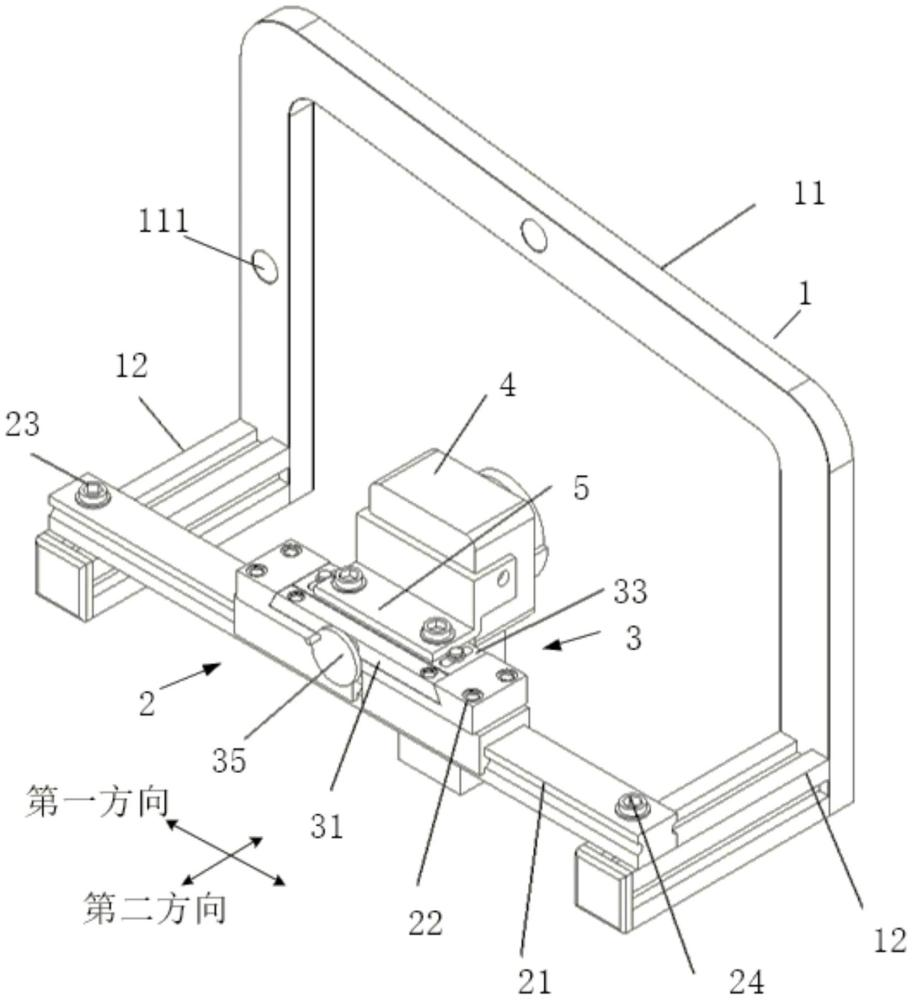

如图1和图2所示，发动机打标面的二次磨削装置包括支架1、移动组件2、磨削组件4和进给组件3，支架1用于固定安装于发动机；移动组件2固定安装于支架1；进给组件3能够沿第一方向移动地安装于移动组件2，进给组件3包括固定件31、第一螺杆32和承载件33，第一螺杆32一端穿过固定件31与承载件33连接以调节承载件33沿第二方向的进给量；磨削组件4安装于进给组件3，磨削组件4被进给组件3驱动以沿第二方向靠近或者远离打标面。

由于进给组件3能够沿第一方向移动地安装于移动组件2，这样磨削组件4可沿第一方向移动，而第一螺杆32一端穿过固定件31与承载件33连接以调节承载件33沿第二方向的进给量，这样磨削组件4可沿第二方向移动，如此可通过进给组件3和移动组件2对磨削组件4进行精确控制，无需拆除任何发动机零部件，大大简化了操作流程，降低了操作复杂度，同时也避免了因拆卸零部件可能引起的油道、水道等连接处的泄漏，减少了质量问题的发生。

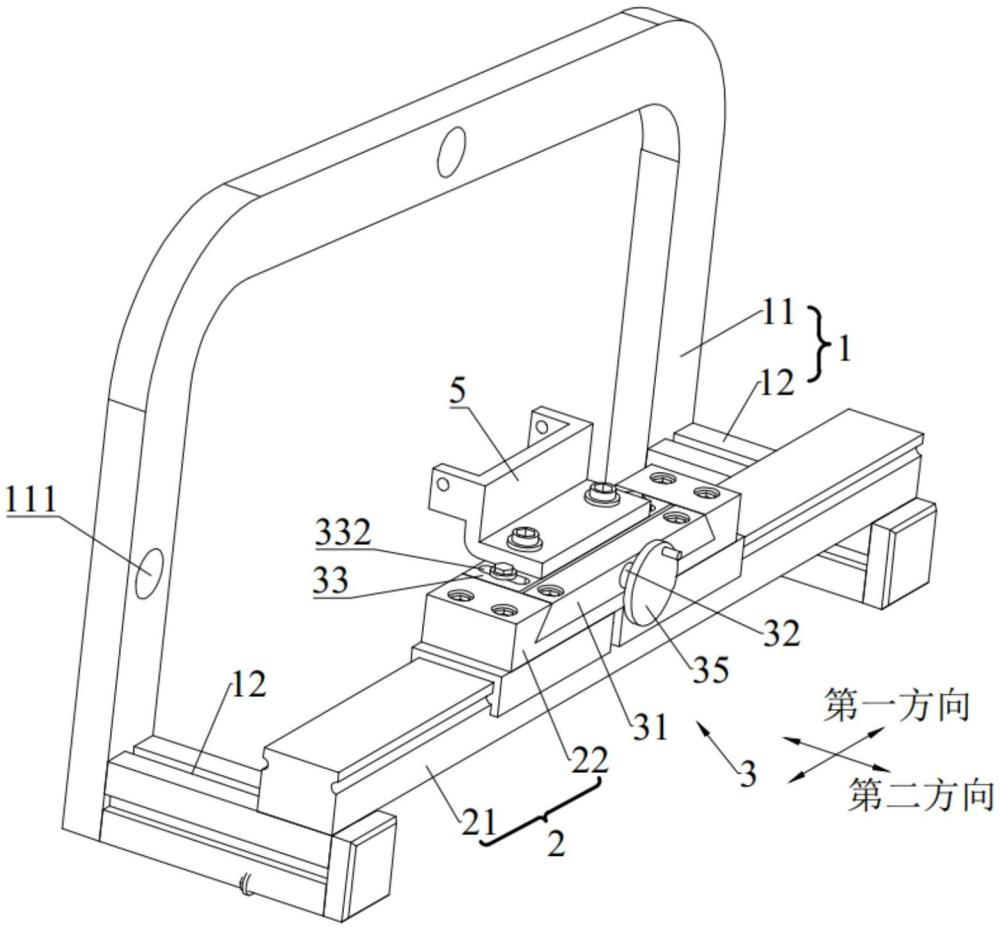

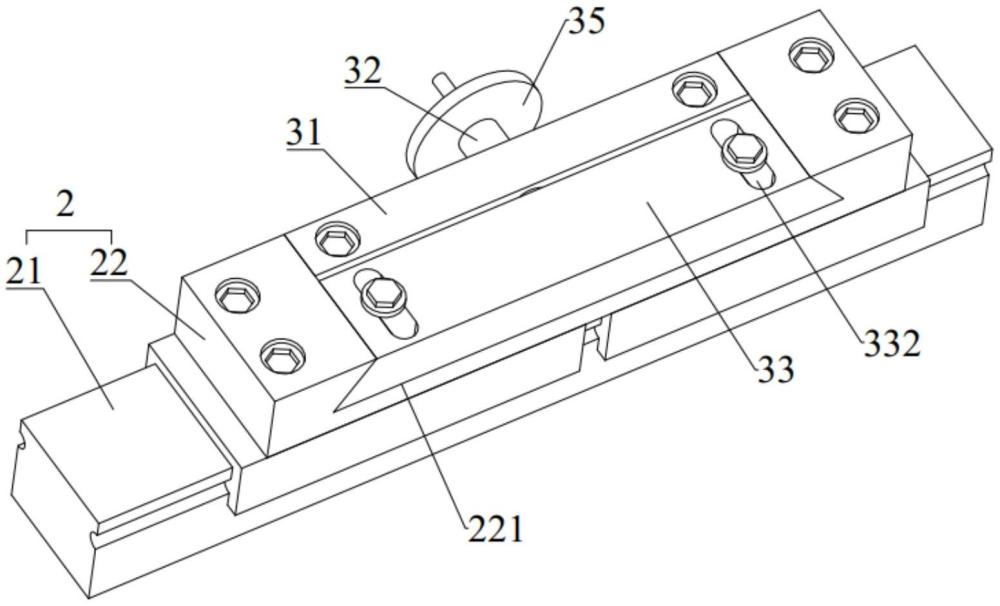

在一些实施例中，如图3和图4所示，固定件31具有与第一螺杆32的螺纹配合的螺纹通孔，第一螺杆32具有内螺纹孔，承载件33设置有第二螺杆34，第二螺杆34插入内螺纹孔内与内螺纹孔螺纹配合，螺纹通孔的旋向与内螺纹孔的旋向相同，内螺纹孔与第一螺杆32的外螺纹旋向相反。举例地，第一螺杆32的内螺纹孔与第二螺杆34均是左旋螺纹，第一螺杆32的外螺纹与螺纹通孔均是右旋螺纹，当第一螺杆32向右旋拧时，第二螺杆34会向前移动，反之也会向后移动，这样来控制承载件33沿第二方向移动，以实现对承载件33的进给控制。

在其他一些实施例中，固定件31具有与第一螺杆32螺纹配合的螺纹通孔，第一螺杆32具有内螺纹孔，承载件33设置有第二螺杆34，第二螺杆34插入内螺纹孔内与内螺纹孔螺纹配合，内螺纹孔、螺纹通孔、第一螺杆32的外螺纹旋向相同，内螺纹孔的螺距与外螺纹的螺距不同。当第一螺杆32向右旋拧时，由于第二螺杆34的螺距与第一螺杆32的螺距不同，这样，第二螺杆34会向前移动，反之也会向后移动，这样来控制承载件33沿第二方向移动，以实现对承载件33的进给控制。

第一螺杆32远离第二螺杆34的一端设置有磨削深度控制罗盘35，磨削深度控制罗盘35与第一螺杆32螺纹连接。磨削深度控制罗盘35为现有技术，在此不详细赘述。

在有一些实施例中，为了保证固定件31和承载件33二者在初始位置贴合，避免二者之间的距离过大造成磨削屑较多的进入，为此，承载件33朝向第一螺杆32的一侧设置有供第一螺杆32穿入的凹槽331，第二螺杆34背离第一螺杆32的一端安装于凹槽331的槽底。凹槽331的直径大于第一螺杆32的直径，如此可便于第一螺杆32插入凹槽331内。

在有一些实施例中，承载件33设置有两个间隔设置的条形孔332，条形孔332的长度沿第二方向延伸，螺栓穿过条形孔332与移动组件2连接以限制承载件33行程。如此可避免第一螺杆32旋拧过渡造成承载件33脱离移动组件2。

在一些实施例中，移动组件2包括直线滑轨21和导向件22，导向件22与直线滑轨21滑动连接，导向件22具有容纳固定件31和承载件33的容纳槽221，固定件31固定安装于容纳槽221内，承载件33能够在容纳槽221内沿第二方向移动。容纳槽221的设置可为承载件33的移动提供导向，避免承载件33移动时发生位置偏移，导向件22与直线滑轨21滑动连接能够沿第一方向移动，进而可带动磨削组件4沿第一方向一同移动，直线滑轨21和导向件22的结构简单，可使发动机打标面的二次磨削装置整体体积减小，由于磨削组件4可在第一方向和第二方向调节位置，可避免空间限制，实现打标面的二次加工。

为了保证承载件33在移动过程中更为平稳不发生抖动，容纳槽221为燕尾槽，承载件33形状与燕尾槽的形状相同。也即承载件33的两端具有与燕尾槽的槽壁相贴合的倾斜侧壁，以提高承载件33的移动平稳性。

需要说明的是，直线滑轨21的两端固定安装于支架1。

具体而言，磨削组件4通过安装架5固定安装于承载件33上。

如图1和图2所示，支架1包括连接杆11和两个支撑杆12，连接杆11的两端分别安装有一支撑杆12，两个支撑杆12安装于连接杆11的同侧。连接杆11形状为C型，此处提供了一种连接杆11的具体形状，只要能够实现将磨削组件4固定在发动机上均在保护范围内。连接杆11上具有连接孔111，螺栓穿过连接孔111将该支架1整体安装在发动机的机体上。

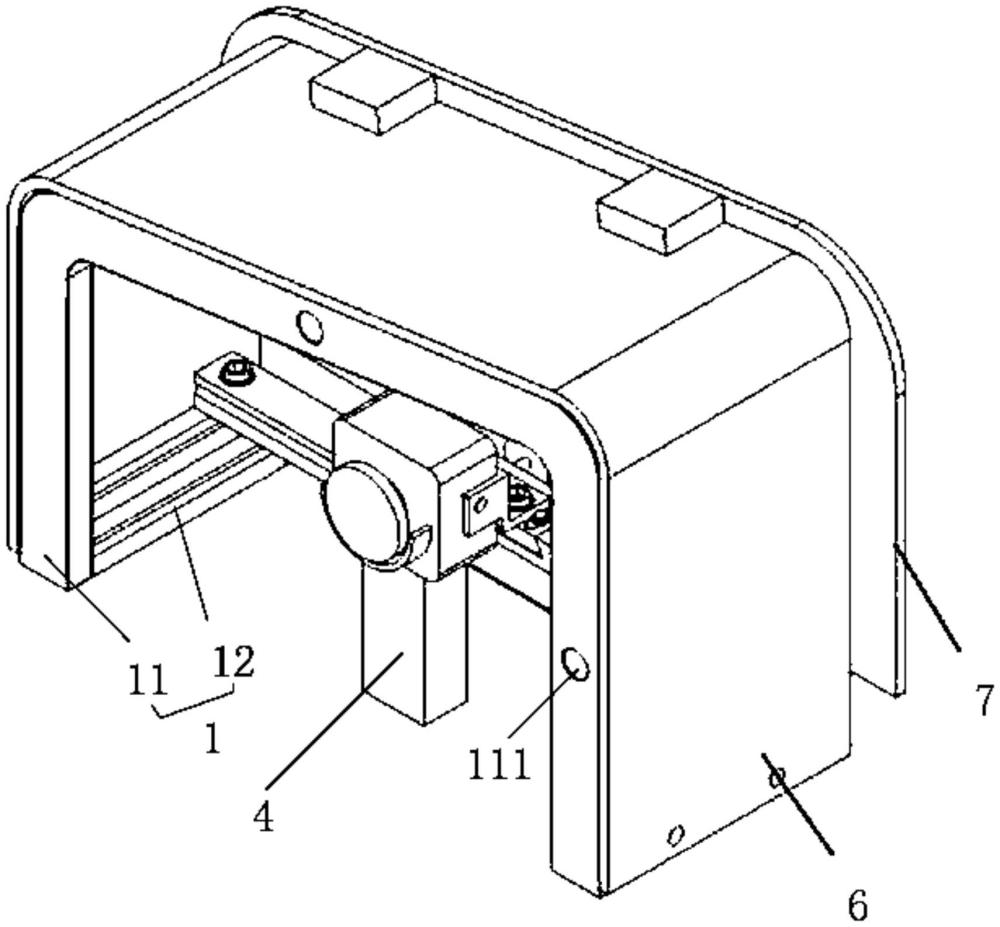

此外，如图5所示，发动机打标面的二次磨削装置还包括防护罩6和透明观察板7，防护罩6安装于支撑杆12，透明观察板7安装于防护罩6。防护罩6用于避免磨削屑飞溅，透明观察板7则可帮助操作人员实时获知打磨实况。

结合图1至图5所示，发动机打标面的二次磨削装置的安装步骤如下：

1、获得支架1。支架1由连接杆11、位于连接杆11左侧的第一个支撑杆12和位于连接杆11右侧的第二个支撑杆12通过螺栓连接在连接架上，连接杆11的尺寸为400mm*280mm*220mm，材质为不锈钢；位于连接杆11左右两侧的支撑杆12的尺寸为200mm*40mm*40mm，材质为铝合金。在连接架上设置两个直径为10mm的圆孔，用于通过螺栓将支架1固定在发动机机体上。

2、安装移动组件2。移动组件2包括直线滑轨21、导向件22、第一平行度调整螺栓23和第二平行度调整螺栓24，直线滑轨21的型号为HG25。在连接杆11左右两侧的支撑杆12上设置贯穿式T型槽，第一平行度调整螺栓23与直线滑轨21左侧的支撑杆12通过专用半圆头螺栓连接，第二平行度调整螺栓24与直线滑轨21右侧的支撑杆12通过专用半圆头螺栓连接，通过移动第一平行度调整螺栓23和第二平行度调整螺栓24位置可控制直线滑轨21的平行度。

3、安装进给组件3。导向件22通过螺栓连接在直线滑轨21上，固定件31通过螺栓连接在导向件22上，同时固定件31两侧有与具有与容纳槽221的倾斜槽壁的角度相匹配的斜侧壁；承载件33通过螺栓分别穿过条形孔332连接在导向件22上，同时承载件33两侧有与具有容纳槽221的倾斜槽壁的角度相匹配的斜侧壁，条形孔332用于锁止进给量。磨削深度控制罗盘35与第一螺杆32通过螺纹连接，第一螺杆32设置有与第二螺杆34尺寸相同的内螺纹孔，第一螺杆32穿过固定件31正中的螺纹通孔，通过内螺纹孔与第二螺杆34连接，用于给进量的精确控制。导向件22的长宽高为100mm*60mm*30mm，材质为硬质合金；固定件31的长宽高为70mm*15mm*15mm，材质为不锈钢；承载件33的长宽高为70mm*45mm*15mm，材质为硬质合金；磨削深度控制罗盘35的直径为50mm，材质为黄铜。

4、组装磨削组件4。安装架5通过螺栓连接在承载件33上，磨削组件4通过螺栓连接在支架1上，防护罩6通过螺栓分别连接在两个支撑杆12上，透明观察板7通过定位销悬挂在防护罩6上。

将磨削组件4通过连接杆11上的圆孔使用螺栓固定在发动机机体上，通过调整移动组件2和进给组件3，实现对发动机打标面的磨削作业。发动机打标面的二次磨削装置可以实现对发动机打标面的高效、精确磨削，且操作简单，携带方便，适合在各种场合使用。

本实施例提供了一种发动机打标面的二次磨削装置，能够控制机构实现精确控制，无需拆除任何发动机零部件，大大简化了操作流程，降低了操作复杂度，同时也避免了因拆卸零部件可能引起的油道、水道等连接处的泄漏，减少了质量问题的发生。本实用新型的发动机打标面的二次磨削装置便携式设计，体积小、重量轻，可以在各种不同的场地和环境下进行作业，特别是在发动机已装入整车后，也可以进行打标面的二次加工作业，克服了现有技术中由于空间限制无法进行二次加工的问题。本实用新型的发动机打标面的二次磨削装置通过移动组件2和进给组件3，可以对发动机的打标面进行精确的磨削加工，满足了不同场景、不同规格下的发动机打标面二次加工的需求，提高了加工精度。本实用新型的磨削装置通过两颗紧固螺栓固定在发动机机体上，保证了磨削作业时的平稳性，提高了加工质量。

此外，上述仅为本实用新型的较佳实施例及所运用技术原理。本领域技术人员会理解，本实用新型不限于这里所述的特定实施例，对本领域技术人员来说能够进行各种明显的变化、重新调整和替代而不会脱离本实用新型的保护范围。因此，虽然通过以上实施例对本实用新型进行了较为详细的说明，但是本实用新型不仅仅限于以上实施例，在不脱离本实用新型构思的情况下，还可以包括更多其他等效实施例，而本实用新型的范围由所附的权利要求范围决定。

Specific embodiment

The following is a further detailed explanation of the present utility model in combination with the attached drawings and embodiments. It is understandable that the specific embodiments described here are only used to interpret the present invention, not to qualify the present invention. It should also be noted that, for ease of description, only part of the structure related to the utility model is shown in the attached drawing, but not the whole structure.

In the description of the utility model, unless otherwise expressly stipulated and qualified, the terms "connected", "connected", "fixed" should be broadly understood, for example, it may be a fixed connection, a detachable connection, or a single piece; It can be mechanically or electrically connected; It can be directly connected or indirectly through intermediate media, or it can be the internal connection of two elements or the interaction relationship between two elements. For ordinary technicians in the field, the specific meaning of the above terms in the present utility model can be understood on a case-by-case basis.

In the present model, unless otherwise expressly stipulated and qualified, the first feature "above" or "below" the second feature may include direct contact with the first and second features, or it may include the first and second features that are not in direct contact but through other feature contact between them. Moreover, the first feature is "above", "above" and "above" the second feature, including the first feature directly above and diagonally above the second feature, or simply means that the first feature is higher horizontally than the second feature. The first feature is "below", "below" and "below" include the first feature directly below and diagonally below the second feature, or simply means that the horizontal height of the first feature is less than the second feature.

In the description of the present embodiment, the terms "up", "down", "right", equiorientation or positional relationship are based on the orientation or position relationship shown in the attached drawing, and are only for the purpose of facilitating description and simplification of operation, rather than indicating or implying that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be understood as a limitation to the present utility model. In addition, the terms "first" and "second" are only used to distinguish them in description and have no special meaning.

The present embodiment provides a secondary grinding device for the engine marking surface, which can achieve precise control of the control mechanism without removing any engine parts, which greatly simplifies the operation process, reduces the complexity of operation, and also avoids the leakage of oil channels, waterways and other connections that may be caused by the disassembly of parts, and reduces the occurrence of quality problems.

As shown in FIG. 1 and FIG. 2, the secondary grinding device of the engine marking surface includes bracket 1, moving assembly 2, grinding assembly 4 and feed assembly 3, and bracket 1 is used for fixed installation in the engine; Moving assembly 2 is fixed and installed on bracket 1; The feed assembly 3 can be moved in the first direction and installed on the moving assembly 2, the feed assembly 3 comprises a fixing member 31, a first screw 32 and a bearing member 33, and one end of the first screw 32 is connected with the bearer 33 through the fixing member 31 to adjust the feed rate of the bearer 33 in the second direction; The grinding assembly 4 is installed in the feed assembly 3, and the grinding assembly 4 is driven by the feed assembly 3 to approach or move away from the marking surface in the second direction.

Since the feed assembly 3 can be moved in the first direction and installed in the moving assembly 2, so that the grinding assembly 4 can move in the first direction, and one end of the first screw 32 is connected with the bearer 33 through the fixture 31 to adjust the feed rate of the bearer 33 in the second direction, so that the grinding assembly 4 can move in the second direction, so that the grinding assembly 4 can be precisely controlled by the feed assembly 3 and the moving assembly 2, without removing any engine parts, which greatly simplifies the operation process and reduces the operation complexity. At the same time, it also avoids leakage at the connection points such as oil channels and waterways that may be caused by disassembling parts, and reduces the occurrence of quality problems.

In some embodiments, as shown in FIG. 3 and FIG. 4, the fixture 31 has a threaded through hole that is matched with the thread of the first screw 32, the first screw 32 has an internal thread hole, the bearing member 33 is provided with a second screw 34, the second screw 34 is inserted into the internal thread hole and the internal thread hole is fitted with the thread, the thread through hole is the same as the thread direction of the internal thread hole, and the internal thread hole is the opposite of the external thread of the first screw 32. For example, the internal thread hole of the first screw 32 and the second screw 34 are both left-handed threads, and the external threads and threaded through holes of the first screw 32 are right-hand threaded, and when the first screw 32 is screwed to the right, the second screw 34 will move forward and vice versa, so as to control the movement of the carrier 33 in the second direction to realize the feed control of the carrier 33.

In some other embodiments, the fixture 31 has a threaded through hole that is mated with the first screw 32 thread, the first screw 32 has an internal thread hole, the bearing member 33 is provided with a second screw 34, the second screw 34 is inserted into the internal thread hole and the internal thread hole is matched with the thread of the internal thread hole, the internal thread hole, the thread through hole and the external thread of the first screw 32 are the same direction of rotation, and the pitch of the internal thread hole is different from that of the external thread. When the first screw 32 is screwed to the right, because the pitch of the second screw 34 is different from that of the first screw 32, the second screw 34 will move forward and vice versa, so as to control the movement of the carrier 33 in the second direction to realize the feed control of the carrier 33.

The first screw 32 is provided with a grinding depth control compass 35 at one end away from the second screw 34, and the grinding depth control compass 35 is connected with the first screw 32 thread. The grinding depth control compass 35 is a prior art and will not be detailed here.

In some embodiments, in order to ensure that the fixing member 31 and the bearing member 33 fit in the initial position, and to avoid the entry of more grinding chips caused by the excessive distance between the two, for this purpose, the bearing member 33 is provided with a groove 331 for the first screw 32 to penetrate, and one end of the second screw 34 deviating from the first screw 32 is installed at the bottom of the groove of the groove 331. The diameter of the groove 331 is greater than the diameter of the first screw 32, so that the first screw 32 can be inserted into the groove 331.

In some embodiments, the bearer 33 is provided with two intervaled bar holes 332, the length of the strip hole 332 extends in the second direction, and the bolt passes through the bar hole 332 and is connected with the moving assembly 2 to limit the travel of the bearer 33. In this way, the first screw 32 rotation transition can be avoided and the bearer 33 is disengaged from the moving assembly 2.

In some embodiments, the moving assembly 2 comprises a linear slide rail 21 and a guide member 22, the guide member 22 is sliding connected with a linear slide rail 21, the guide member 22 has a holding groove 221 accommodating a fixing member 31 and a bearing member 33, the fixing member 31 is fixed installed in the accommodating slot 221, and the bearing member 33 is able to move in the second direction within the accommodating groove 221. The setting of the accommodating groove 221 can provide guidance for the movement of the bearing member 33, avoid the position shift when the bearing member 33 moves, the guide member 22 and the linear slide rail 21 sliding connection can move in the first direction, and then can drive the grinding assembly 4 to move together in the first direction, the structure of the linear slide 21 and the guide member 22 is simple, which can reduce the overall volume of the secondary grinding device of the engine marking surface, because the grinding assembly 4 can adjust the position in the first and second directions, it can avoid space constraints, Realize the secondary processing of the marking surface.

In order to ensure that the bearer 33 is more stable and does not shake during movement, the accommodating slot 221 is a dovetail groove, and the shape of the bearing member 33 is the same as that of the dovetail groove. That is, the two ends of the bearer 33 have inclined side walls that fit the groove wall of the dovetail groove to improve the movement smoothness of the bearer 33.

It should be noted that both ends of the linear slide rail 21 are fixed and installed on the bracket 1.

Specifically, the grinding assembly 4 is fixed on the bearer 33 by means of a mounting frame 5.

As shown in FIG. 1 and FIG. 2, the bracket 1 comprises a connecting rod 11 and two support rods 12, and one support rod 12 is installed at both ends of the connecting rod 11, and two support rods 12 are installed on the same side of the connecting rod 11. The shape of the connecting rod 11 is type C, and a specific shape of the connecting rod 11 is provided here, as long as it is possible to fix the grinding assembly 4 on the engine within the protection range. There is a connection hole 111 on the connecting rod 11, and the bolt passes through the connecting hole 111 to install the bracket 1 as a whole on the body of the engine.

In addition, as shown in FIG. 5, the secondary grinding device of the engine marking surface also includes a protective cover 6 and a transparent observation plate 7, the protective cover 6 is installed on the support rod 12, and the transparent observation plate 7 is installed on the protective shield 6. The shield 6 is used to avoid grinding chip splashing, and the transparent observation plate 7 helps the operator to know the grinding situation in real time.

Combined with the figs. 1 to fig. 5, the installation steps of the secondary grinding device of the engine marking surface are as follows:

1. Get the bracket 1. Bracket 1 is connected to the connecting frame by bolts by connecting rod 11, the first support rod 12 located on the left side of the connecting rod 11 and the second support rod 12 located on the right side of the connecting rod 11 by bolts, the size of the connecting rod 11 is 400mm*280mm*220mm, and the material is stainless steel; The size of the support rod 12 located on the left and right sides of the connecting rod 11 is 200mm*40mm*40mm, and the material is aluminum alloy. Two round holes with a diameter of 10 mm are provided on the connecting frame for attaching bracket 1 to the engine body by means of bolts.

2. Install the mobile component 2. The moving assembly 2 comprises a linear slide 21, a guide member 22, a first parallelism adjustment bolt 23 and a second parallelism adjustment bolt 24, and the linear slide 21 is model HG25. A through-type T-shaped groove is provided on the support rod 12 on the left and right sides of the connecting rod 11, the first parallelism adjustment bolt 23 and the support rod 12 on the left side of the linear slide 21 are connected by a special semi-circular head bolt, the second parallelism adjustment bolt 24 and the support rod 12 on the right side of the linear slide 21 are connected by a special semi-round head bolt, and the parallelism of the linear slide 21 can be controlled by moving the position of the first parallelism adjustment bolt 23 and the second parallelism adjustment bolt 24.

3. Install the feed component 3. the guide member 22 is bolted to the linear slide rail 21, the fixing member 31 is bolted to the guide member 22, and at the same time the fixture 31 has an oblique side wall on both sides that matches the angle of the inclined groove wall with the accommodating groove 221; The bearer 33 is connected to the guide member 22 through the bar hole 332 respectively by bolts, and at the same time there are beveled side walls on both sides of the bearing member 33 that match the angle of the inclined groove wall with the accommodating groove 221, and the strip hole 332 is used to lock the feed volume. The grinding depth control compass 35 is connected with the first screw 32 by thread, the first screw 32 is provided with an internal thread hole of the same size as the second screw 34, and the first screw 32 passes through the threaded through the middle of the fixture 31 and is connected with the second screw 34 through the internal thread hole for precise control of feed volume. The length, width and height of the guide member 22 are 100mm*60mm*30mm, and the material is cemented carbide; The length, width and height of the fixture 31 are 70mm*15mm*15mm, and the material is stainless steel; The length, width and height of the bearer 33 are 70mm*45mm*15mm, and the material is cemented carbide; The diameter of the grinding depth control compass 35 is 50 mm and the material is brass.

4. Assemble the grinding components 4. The mounting frame 5 is connected to the bearer 33 by bolts, the grinding assembly 4 is connected to the bracket 1 by bolts, the protective cover 6 is connected to the two support rods 12 by bolts, and the transparent observation plate 7 is suspended on the protective cover 6 by means of a locating pin.

The grinding assembly 4 is bolted to the engine body through a round hole on the connecting rod 11, and the grinding surface of the engine is realized by adjusting the moving component 2 and the feed component 3. The secondary grinding device of the engine marking surface can achieve efficient and precise grinding of the engine marking surface, and is simple to operate, easy to carry, and suitable for use in various occasions.

The present embodiment provides a secondary grinding device for the engine marking surface, which can achieve precise control of the control mechanism without removing any engine parts, which greatly simplifies the operation process, reduces the complexity of operation, and also avoids the leakage of oil channels, waterways and other connections that may be caused by the disassembly of parts, and reduces the occurrence of quality problems. The secondary grinding device of the engine marking surface of the utility model is portable design, small in size and light in weight, and can be operated in a variety of different sites and environments, especially after the engine has been installed into the whole vehicle, the secondary processing operation of the marking surface can also be carried out, which overcomes the problem that secondary processing cannot be carried out due to space constraints in the prior art. The secondary grinding device of the engine marking surface of the utility model can accurately grind the marking surface of the engine by moving the component 2 and the feed component 3, which meets the needs of secondary processing of the engine marking surface in different scenarios and different specifications, and improves the processing accuracy. The grinding device of the utility model is fixed on the engine body by two fastening bolts, which ensures the smoothness of the grinding operation and improves the processing quality.

In addition, the above are only better embodiments of the present utility model and the technical principles used. Persons skilled in the field will understand that the present invention is not limited to the specific embodiments described herein and may be significantly altered, readjusted and substituted for personnel skilled in the field without deviating from the scope of protection of the utility invention. Therefore, although the present invention is described in more detail through the above embodiments, the present utility model is not limited to the above embodiments, but may also include more equivalent embodiments without separating from the concept of the present invention, and the scope of the present invention is determined by the scope of the attached claims.
